Rosalind Franklin

The woman erased from the DNA breakthrough

Rosalind Franklin captured “Photo 51,” the key to DNA’s double helix. Her data, shared without her knowledge, helped Watson and Crick win a Nobel. She never got the prize, but today, her role in unlocking life’s blueprint is finally recognized.

Rosalind Franklin was the long-overlooked contributor to discovering DNA's structure

Though James Watson, Francis Crick, and Maurice Wilkins are credited with discovering the DNA double helix, it incorporated Rosalind Franklin's unpublished data. Photo 51, her famous DNA image, took more than 100 hours to produce and a year’s worth of analysis to interpret.

Rosalind Franklin uncovered the molecular structure of the tobacco mosaic virus

Franklin's work revealed the role of ribonucleic acid in virus infectivity, contributing to a foundational understanding of genetics and virology. Her molecular model of the virus was featured as the centerpiece at the 1958 Brussels World's Fair.

Photo 51's distinct 'X' pattern and spacing provided data to validate DNA's model

Rosalind Franklin and Raymond Gosling captured the photo after bombarding DNA fibers with X-rays and observing how the beams were deflected. The photo had a 62-hour exposure time and indicated a helical structure for DNA.

X-ray diffraction reveals atomic structures by analyzing how crystals scatter X-rays

X-ray diffraction involves rotating a crystal in an X-ray beam while a detector captures the resulting diffraction patterns, which depend on the crystal’s internal structure. The mathematical principles behind the technique won the 1915 Nobel Prize and improved crystallography.

The structure of DNA helices comes in three major varieties

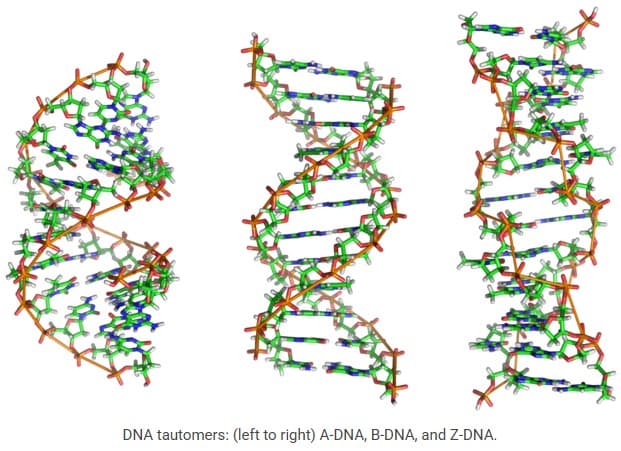

The hereditary molecule can take the form of A-DNA, B-DNA, or Z-DNA based on environmental conditions such as ion concentration and humidity—a characteristic identified by Rosalind Franklin. A-DNA is the shortest and widest of the three, while Z-DNA is the longest and narrowest. B-DNA—the most common variety in living cells—is the intermediate.

Exploring carbon compound pore structures contributed to improved gas mask filtration

During World War II, the British Coal Utilisation Research Association sought to improve the efficiency of coal as an energy source and studied the effectiveness of charcoal filters to keep soldiers safe. Rosalind Franklin's research there formed the basis of her PhD and led to five scientific papers.

Explore a 3D model of the experimental setup Rosalind Franklin used to take Photo 51

To capture the X-ray diffraction image of DNA from the thymus of a calf, Franklin built a humidity-controlling camera to isolate the B form of DNA. The exposure lasted 60 hours and produced a cross pattern, indicating a helical structure.

X-ray data from Rosalind Franklin was key to discovering DNA’s double-helix structure

Although unpublished, the data reached James Watson and Francis Crick, who worked at another institution. Incorporating her data allowed them to validate their model of DNA, which they published without crediting her.

View the model of the tobacco mosaic virus from the 1958 Brussels World's Fair

After she finished analyzing her X-ray diffraction data on DNA fibers, Rosalind Franklin explored plant virus structures. For her work on the TMV, she was invited to build this 5-foot model, modified from earlier versions made of ping pong balls and bicycle handlebar grips.
